E-Pocket
All-in-One Veterinary Endoscope
One handheld platform.
Rigid and flexible scope options.
Change compatible rigid and flexible scopes while keeping the same handheld display, image controls and recording functions. Choose the scope and accessories for your examination setup.
Configuration examples. Scopes, sheaths and accessories depend on the selected setup.
One handheld platform.
Different scope options.
E-Pocket brings the display, image controls and recording functions together in one handheld unit.
Choose the scope.
Keep the platform.
Compare the viewing direction of rigid scopes with the up/down tip control of flexible scopes, then check the selected model’s diameter and working length.
Rigid scopes
Different sizes, with forward-viewing and angled options. Choose the diameter, length and viewing direction for the intended access and observation requirements.

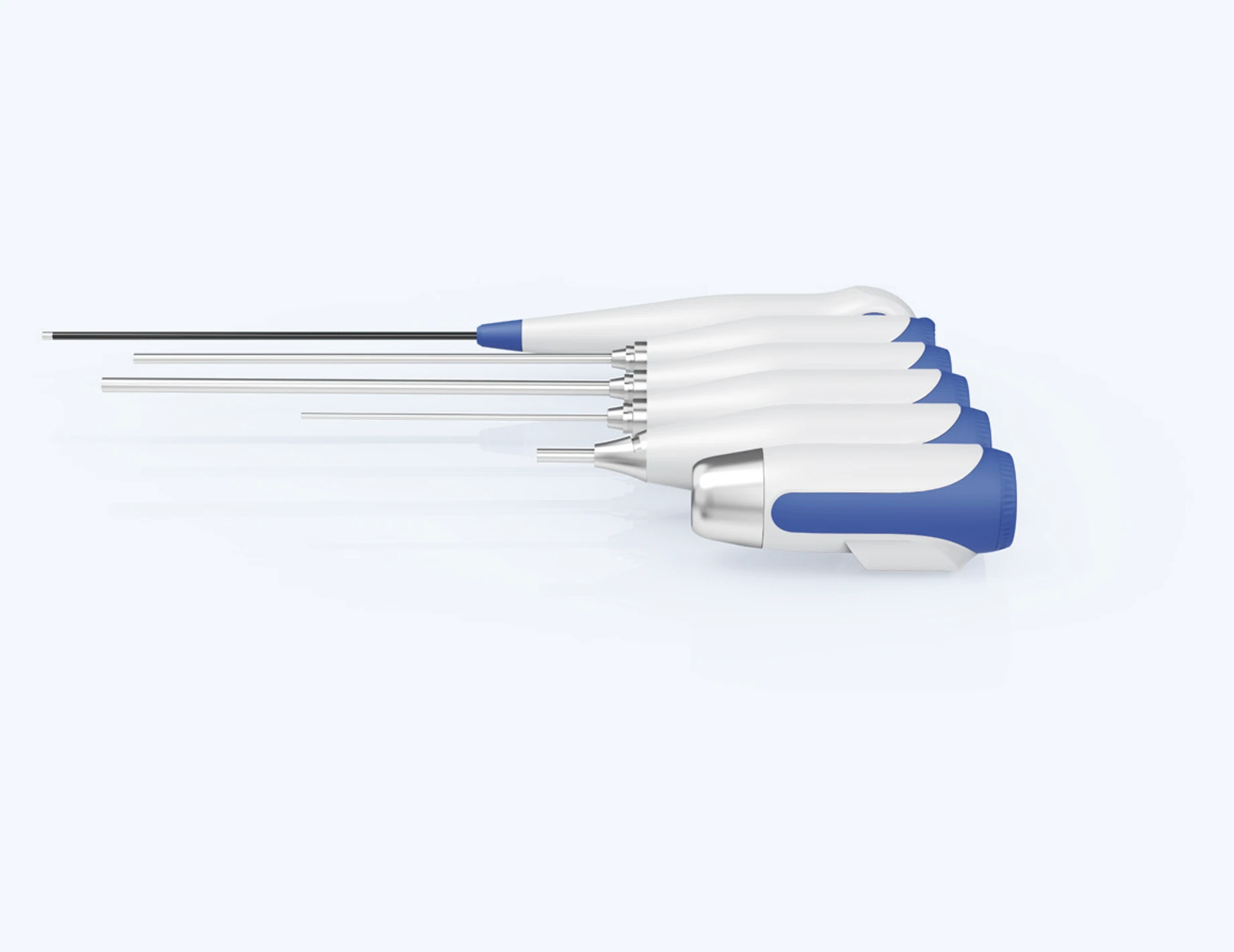

Scopes, adapters and sheaths are matched by model. The image illustrates scope options, not a standard supplied kit.

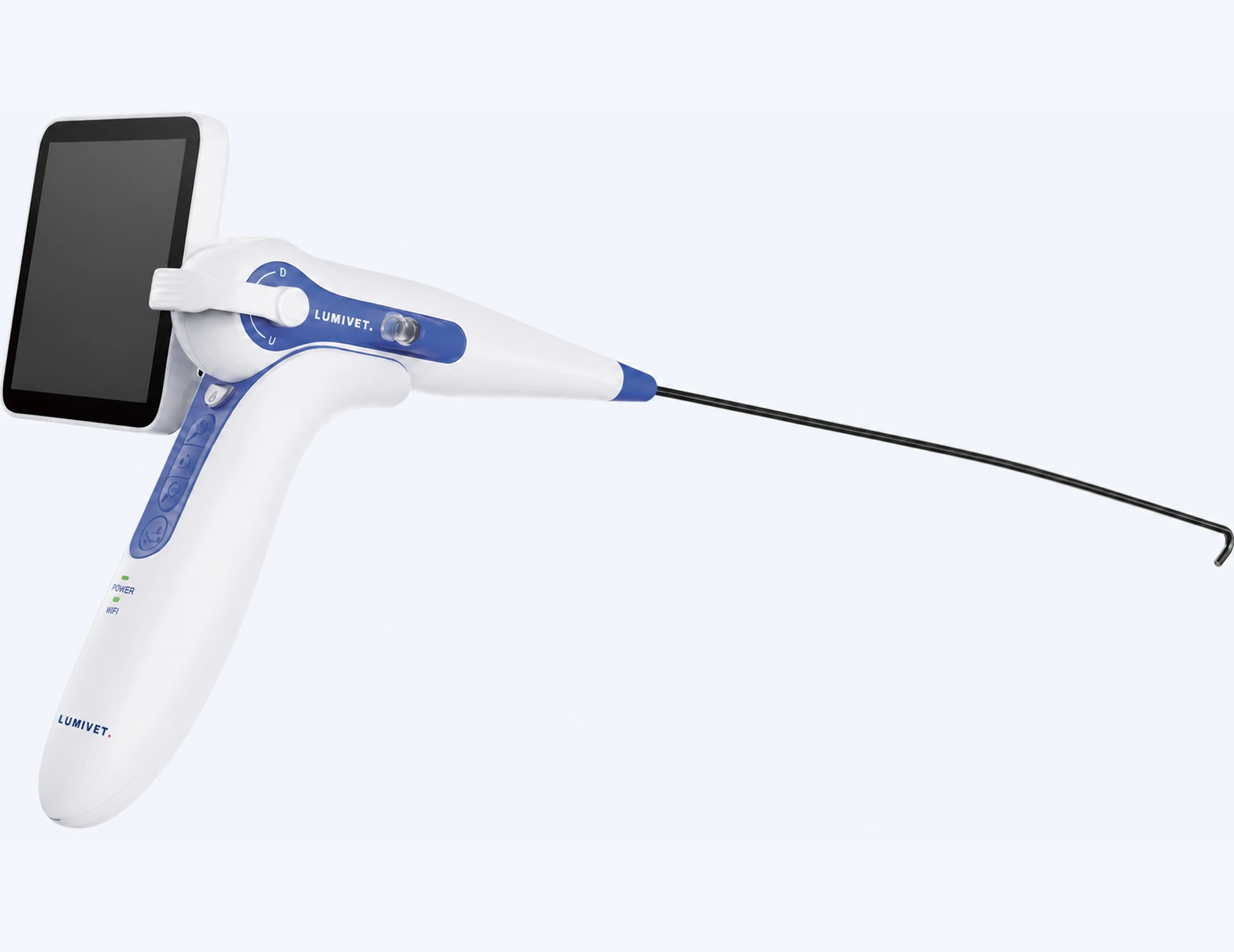

Flexible scopes
Up/down tip angulation changes the viewing direction. Diameter and working length depend on the selected model.
Flexible-scope angulation control and connection detail.
Viewing and control.
In your hand.

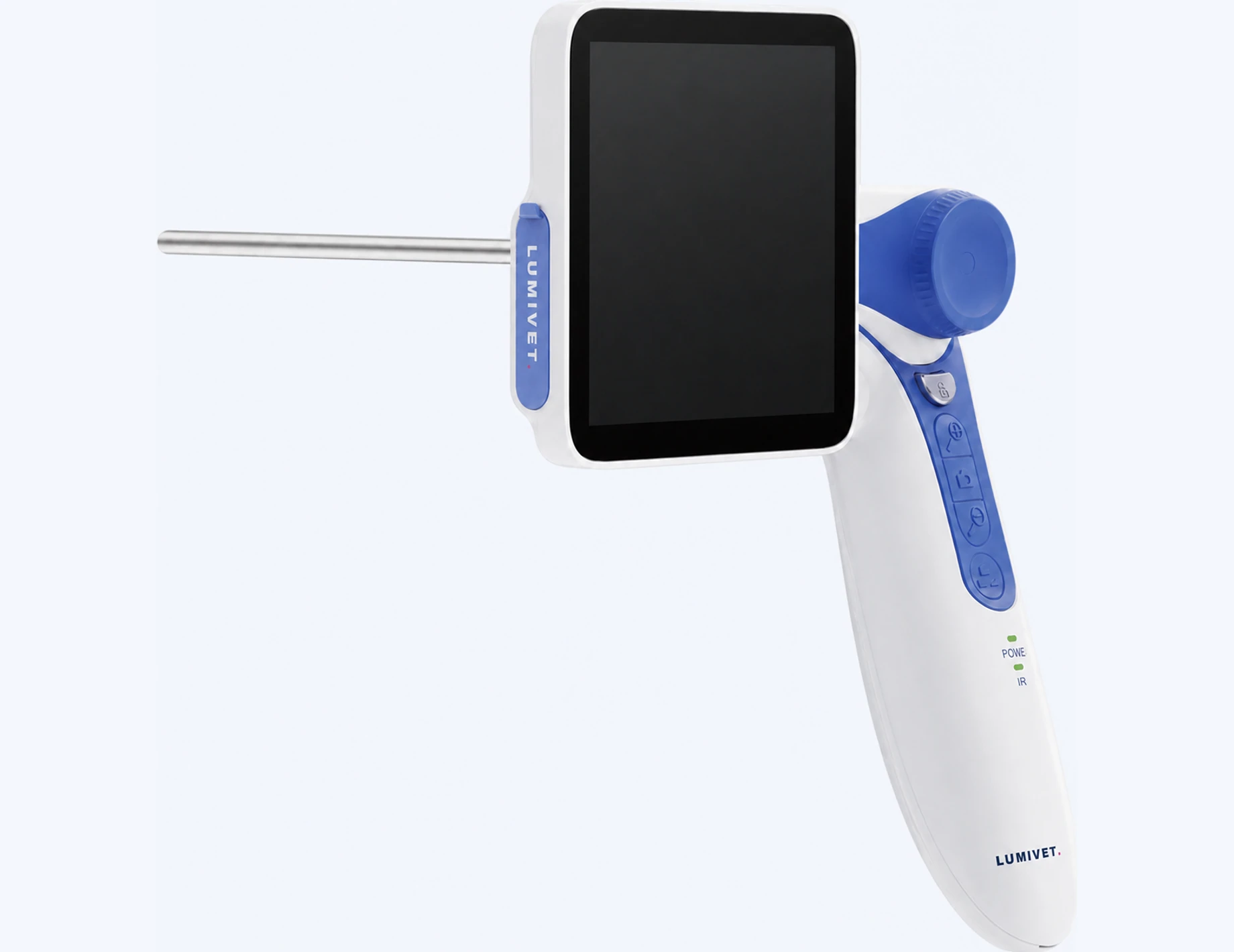

3.95-inch touchscreen
View examination images directly on the 3.95-inch touchscreen. Adjust the screen angle to suit your grip and viewing position.
Imaging controls within reach
The pistol-grip unit keeps brightness, white balance, image adjustment, photo capture and video recording within reach.
Approx. 300 g
Reference weight
Up to 4 hours
Continuous operation
Operating time is on a full charge. Weight and operating time vary with configuration and use.
E-Pocket handheld screen and controls.
Share the view.
Keep the record.
Stream the live view to compatible devices over Wi-Fi, or connect an external display through HDMI. Let colleagues view the same examination and show animal owners what you are observing.
Capture photos and synchronized audio/video recordings with 128 GB of storage. Keep images for examination records, follow-up comparisons and teaching discussions.
Confirm compatible devices and connection requirements for the selected configuration.
Sheath availability and fit depend on the selected scope. The image does not represent the full supplied range.
Full-coverage sheaths.
Full-coverage single-use sheaths are available for compatible scope models. They add a physical barrier, reducing direct contact between the scope and the examination site.
Match the sheath to the specific scope model and dimensions, and replace it after each use. Handle and reprocess the scope and handheld unit according to their respective instructions.
Specifications &
configuration.
Reference specifications for the E-Pocket handheld unit.
Item
Handheld reference value
Display
3.95-inch touchscreen
Display resolution
720 × 720 RGB
Storage
128 GB
Image capture
Photos and synchronized audio/video recording
Connectivity
Wi-Fi, HDMI, USB-C
Reference weight
Approx. 300 g
Continuous operating time
Up to 4 hours on a full charge
Weight and operating time vary with the selected configuration and conditions of use.
Build your configuration.
Choose a compatible rigid or flexible scope, then confirm its diameter, working length, viewing direction or angulation, along with the matching sheath and accessories.
Tell us which scope and display setup you need. We will help confirm the handheld unit, scope, adapters, sheath and cables, and specify the items included in your quotation.
