Veterinary
Laparoscope
Visualization and instrument access in one slim rigid scope.
The LUMIVET laparoscope combines a rigid scope, imaging and an instrument channel for veterinary abdominal visualization.

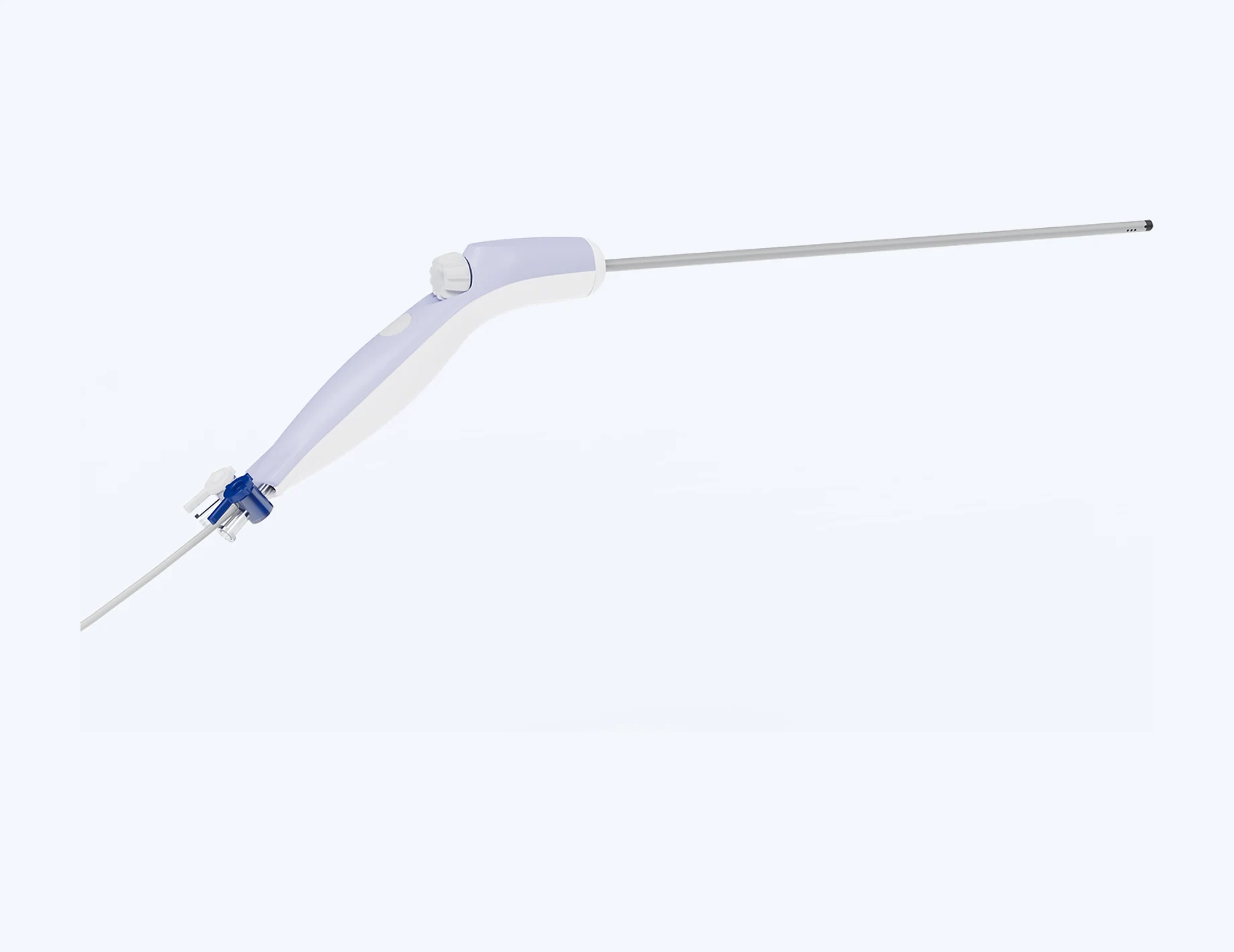

Original-based product views. Appearance depends on the selected configuration.
View the target area with integrated instrument access.
The scope combines visualization with a 2.2 mm working channel for instruments of a compatible outer diameter and working length. Instruments can be selected for tasks such as sampling, with the specific combination defined by the agreed configuration list.
Select a diameter for the access route and area of interest.
The scope is available in 4.2 mm and 5.0 mm outer diameters, both with a 270 mm working length. Select the scope based on animal size, the intended access route and the area to be examined, then match the required access accessories and instruments.
Item
4.2 mm scope
5.0 mm scope
Scope outer diameter
4.2 mm
5.0 mm
Working channel inner diameter
2.2 mm
2.2 mm
Working length
270 mm
270 mm
These dimensions are reference specifications from the available product materials. The supplied model and accessories are defined by the agreed configuration list.
A 0° forward view along the scope axis.
A 0° direction of view with a 120° field of view presents the area ahead of the scope. A compatible imaging and display system allows the operator and assisting team to view the examination together.
Additional reference specifications
Item
Reference value from the supplied specification material
Direction of view
0°
Field of view
120°
Depth of field
3–50 mm
Resolution
≥7 lp/mm
Scope output interface
Lemo
IP rating of the insertion portion
IPX7, insertion portion only
These values are reference specifications from the available specification material. Parameters and connections depend on the selected model and agreed configuration. Resolution is listed in the units used in the source. Follow the relevant model’s instructions for cleaning, disinfection and sterilization.
Match the supporting equipment to the planned procedure.
Match the imaging and display system, access and sealing accessories, and the specific instruments required. Where insufflation or suction is needed, also check the relevant equipment and connections.
For existing image processors or displays, check model-specific compatibility and select connection cables according to the agreed setup. The supplied scope, connection accessories, instruments and other equipment are defined by the agreed configuration list.
Confirm the scope and accessories for your examination.
Tell us the animal species and size, the area to be examined and the planned procedure. If you already have an image processor, display or access accessories, include the model numbers and specifications so we can review scope dimensions, connections and the instrument combination.
